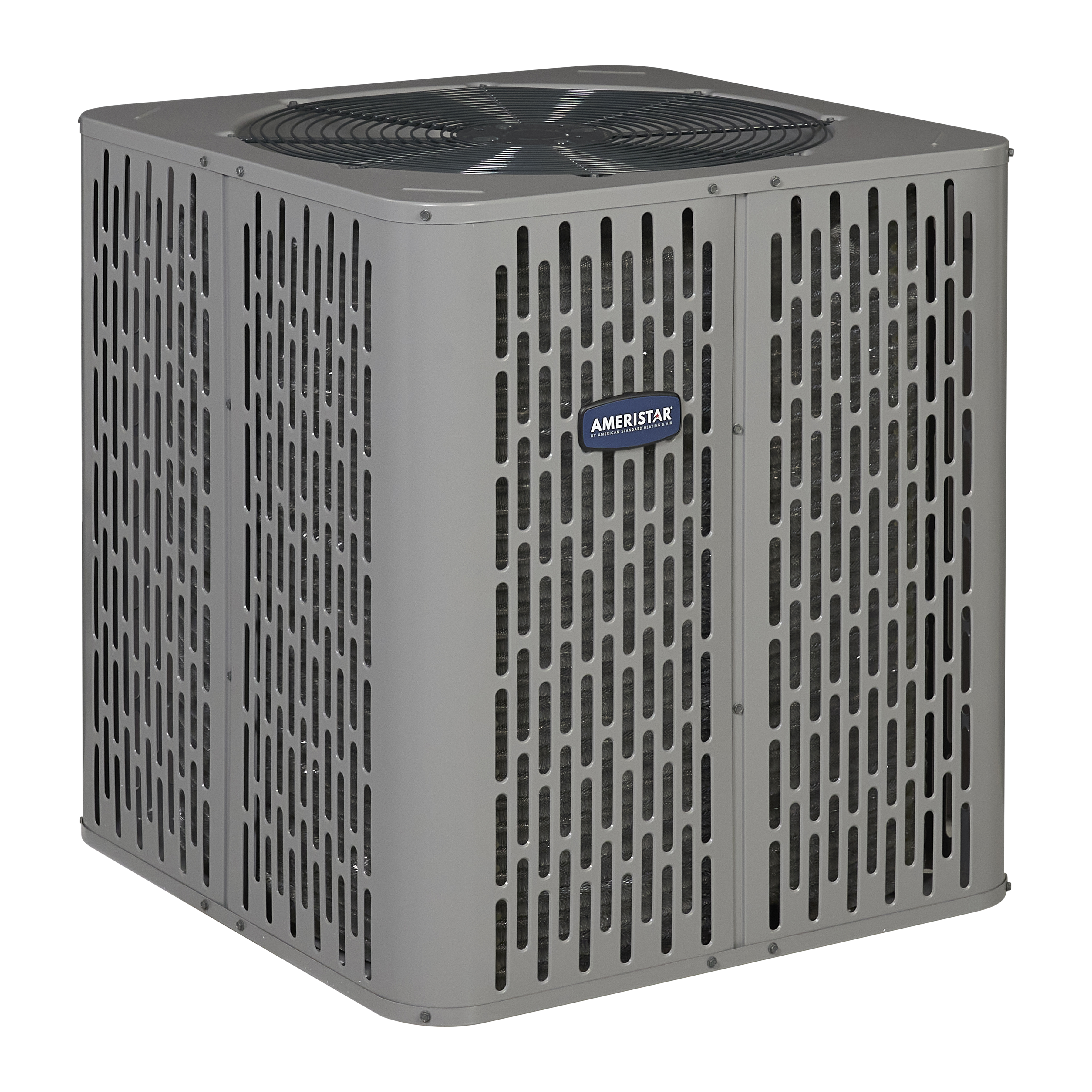

Ameristar Air Conditioner | A5AC4
The Ameristar A5AC4 is a single-stage split system air conditioner built for reliable, efficient cooling at an accessible price point. Engineered with R-454B refrigerant — a lower global warming potential alternative — and featuring an all-aluminum coil and scroll compressor for efficient heat transfer and long-term durability, it's a future-ready choice for both new installations and system replacements. Available from 2 to 5 tons, it covers a wide range of residential applications backed by Ameristar's trusted warranty.
2 TON
2.5 TON
3 TON
Got Questions?
| Ameristar Split System Air Conditioner – A5AC4 Series | |||||||||
| Model Number | Cooling Capacity (BTU) | Tonnage | SEER2 | Refrigerant | Power (V/Ph/Hz) | Max Breaker (A) | Compressor | Dimensions HxWxD (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| A5AC4024A1000A | 24,000 | 2 | 14.3 | R-454B | 208-230/1/60 | 25 | Scroll | 38.3 x 31.1 x 31.1 | 161 |
| A5AC4030A1000A | 30,000 | 2.5 | 14.3 | R-454B | 208-230/1/60 | 25 | Scroll | 42 x 31.1 x 31.1 | 184 |
| A5AC4036A1000A | 36,000 | 3 | 14.3 | R-454B | 208-230/1/60 | 30 | Scroll | 38.3 x 31.1 x 31.1 | 161 |
