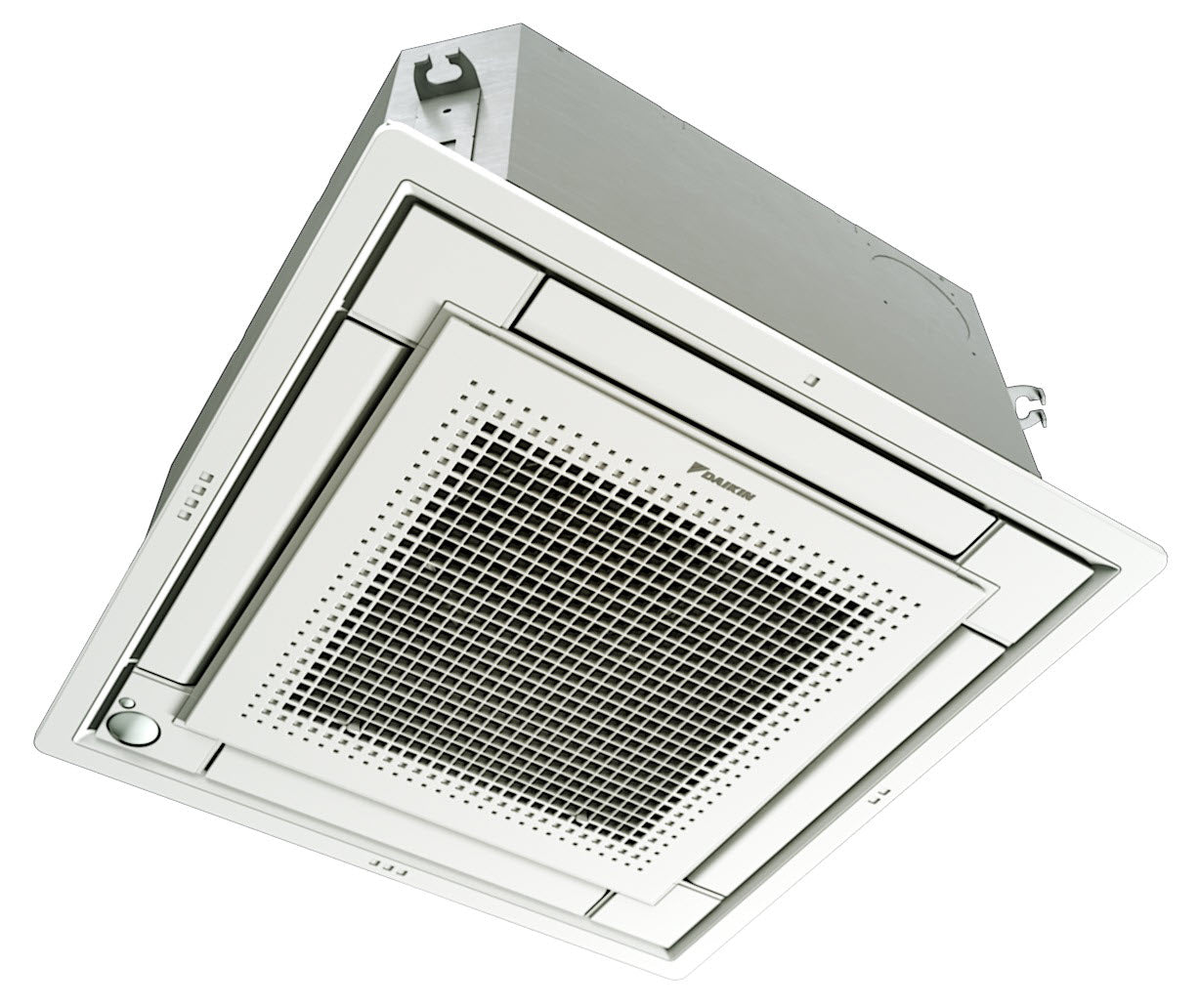

VISTA™ Ceiling Cassette Indoor Unit | FFA

The Daikin VISTA is a remarkable blend of iconic designand engineering excellence with an elegant white finish.Fitting within the ceiling grid and discreetly mounted tothe ceiling itself, Daikin VISTA is stylish, low profile, andcompact. High efficiency and comfort is delivered throughthe combined use of floor and presence sensors (optional).It is also possible to close individual louvers via the wiredremote control for personalized comfort.
High Efficiency
Low-Profile Design
-13°F Heating

Got Questions?

Unit Class Indoor Unit Model # /
Dimensions (H X W X D)
Outdoor Unit Model # /
Dimensions (H X W X D)
Efficiency Rating Lowest Sound Level Weight (lbs) AHRI
Indoor Outdoor Indoor Outdoor
9 FFA09AVJU9
10-1/4 X 22-5/8 X 22-5/8
RXV09AVJU9
21-15/10 X 26-9/16 X 11-3/16
19.8 SEER2 / 9.4 HSPF2 / 12 EER2 29 49 36 63 218468383
12 FFA12AVJU9
10-1/4 X 22-5/8 X 22-5/8
RXV12AVJU9
21-15/16 X 26-9/16 X 11-3/16
19.5 SEER2 / 9 HSPF2 / 11.5 EER2 30 50 36 63 218468384
15 FFA15AVJU9
10-1/4 X 22-5/8 X 22-5/8
RXV15AVJU9
29-1/2 X 34-1/4 X 12-5/8
19.6 SEER2 / 8.8 HSPF2 / 11.5 EER2 31 52 36 113 218468385
18 FFA18AVJU9
10-1/4 X 22-5/8 X 22-5/8
RXV18AVJU9
29-1/2 X 34-1/4 X 12-5/8
18.2 SEER2 / 8.5 HSPF2 / 11.5 EER2 32 55 36 113 218468386
  • Vendor EMCO HVAC Port Coquitlam

SkyportHome App

The SkyportHome app is designed to work with Daikin's smart thermostats, helping users remotely manage and optimize their home's heating and cooling system. The app offers a range of features for monitoring and controlling temperature, indoor air quality (with accessory), and system performance, enabling users to optimize comfort and energy efficiency.

✔ Remote control of thermostat
✔ Air quality monitoring
✔ Energy management and usage
✔ Alerts and maintenance notifications
✔ Integration with smart home systems
✔ Multiple zones control
✔ Geofencing
✔ User-friendly interface

How to Set-Up Your Account
