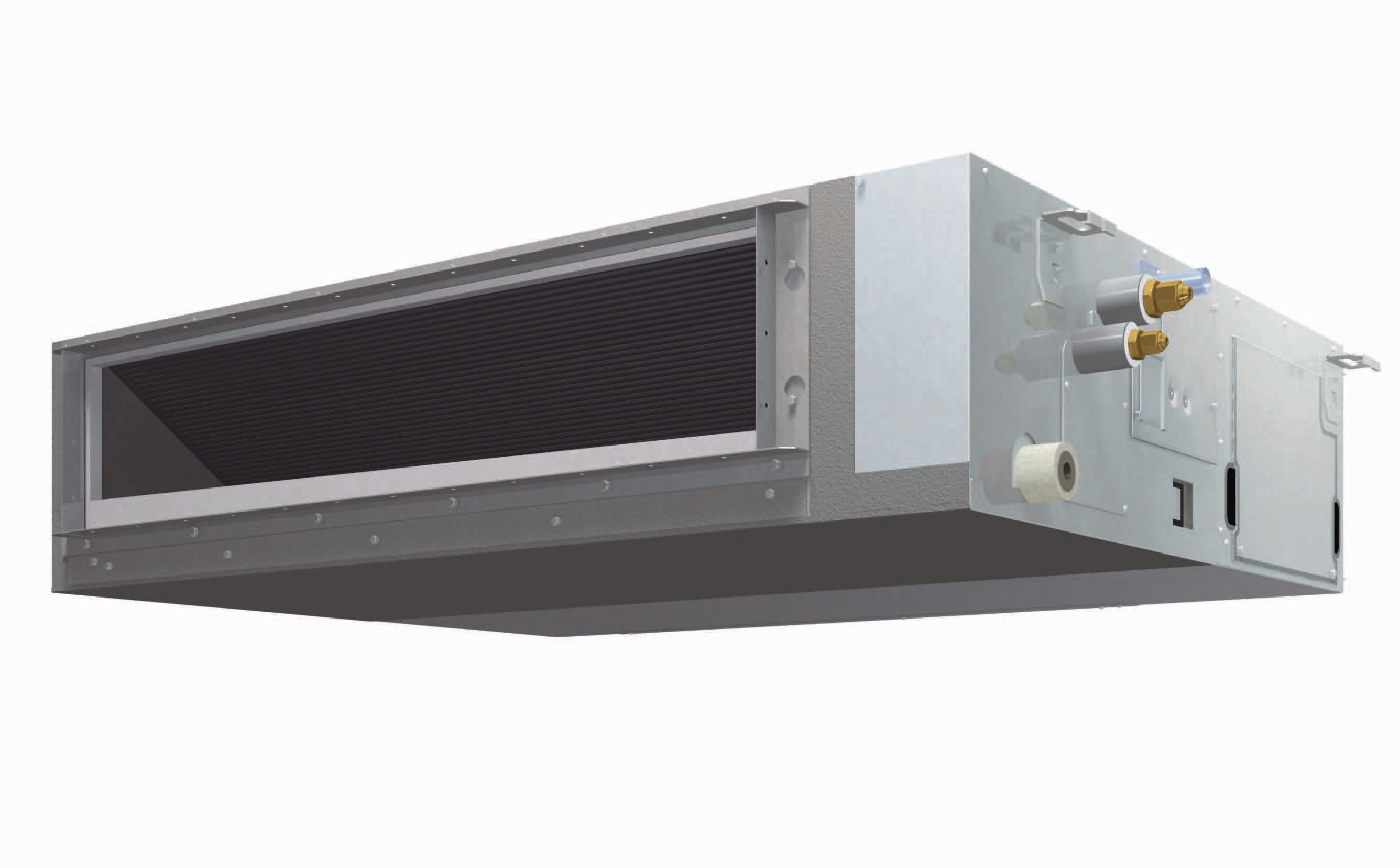

AURORA™ Single & Multi-Zone Slim Duct Indoor Unit | FDMA

A versatile concealed-ductwork indoor unit from the Aurora Series, designed for installations where a hidden, ceiling-mounted solution is preferred over a wall-mounted unit. Higher external static pressure capabilities of up to 0.6 allow for longer duct runs and easier installation of high-MERV filters. Rear or bottom return air configurations provide added installation flexibility, and the unit pairs with single or multi-zone Aurora outdoor units for efficiency up to 21 SEER2 — delivering up to 100% heating capacity at 5°F (-15°C) for reliable comfort in cold climates.
Concealed Ductless Design
R-32 Refrigerant
-25°C (-13°F)

Got Questions?

Email (778) 730 0106

Match With

AURORA™ Heat Pump Single Zone | RXP

AURORA™ Heat Pump Single Zone | RXP

 Heat Pump Multi-Zone | MXM | MXT | MXTH

Heat Pump Multi-Zone | MXM | MXT | MXTH

Match With

Ductless Mini- & Multi-Split Systems

Type Compatible Family (Models starting with)
R-32 12RC Indoor Units CMXV
R-32 S21 Indoor Units1 FTXC, FTXV(09/12/15/18/24)2, FTXV(30/36)4, CTXV, FTKF_B2, FVXV4, FTXF_B2, FTXQ2, FTXM4
R-32 P1/P2 Indoor Units1 FDMA, CDMA
R-410A S21 Indoor Units1 CDXS, CTXS2, FDXS, FTX2, FTXB2, FTXG^, FTX09_12N2, FTX15_18_24N3, FTXR, FTXS, FVXS3
R-410A P1/P2 Indoor Units1 CDMQ, FDMQ, FFQ

1 Must purchase and install communication adaptor DAPT-ONE-VMS

2 Must purchase S21 adapter KRP067A41E

3 Must purchase S21 adapter KRP980B2E

4 Must purchase S21 adapter KER087A41

^ The Sarara drying function of the QUATERNITY units is not supported with Daikin ONE+ touch smart thermostat, but the dehumidification function Daikin ONE+ can be used with the QUATERNITY indoor units.
AURORA Series Single Zone Medium Static Horizontal Ducted Indoor Unit with R-32 Refrigerant
Model Number Dimensions: HxWxD Liquid Pipe Gas Pipe Capacity
FDMA09AVJU9 9-5/8 x 27-9/16 x 31-1/2 1/4" 3/8" 9,000
FDMA12AVJU9 9-5/8 x 27-9/16 x 31-1/2 1/4" 3/8" 12,000
FDMA15AVJU9 9-5/8 x 39-3/8 x 31-1/2 1/4" 1/2" 15,000
FDMA18AVJU9 9-5/8 x 39-3/8 x 31-1/2 1/4" 1/2" 18,000
FDMA24AVJU9 9-5/8 x 39-3/8 x 31-1/2 1/4" 5/8" 24,000
