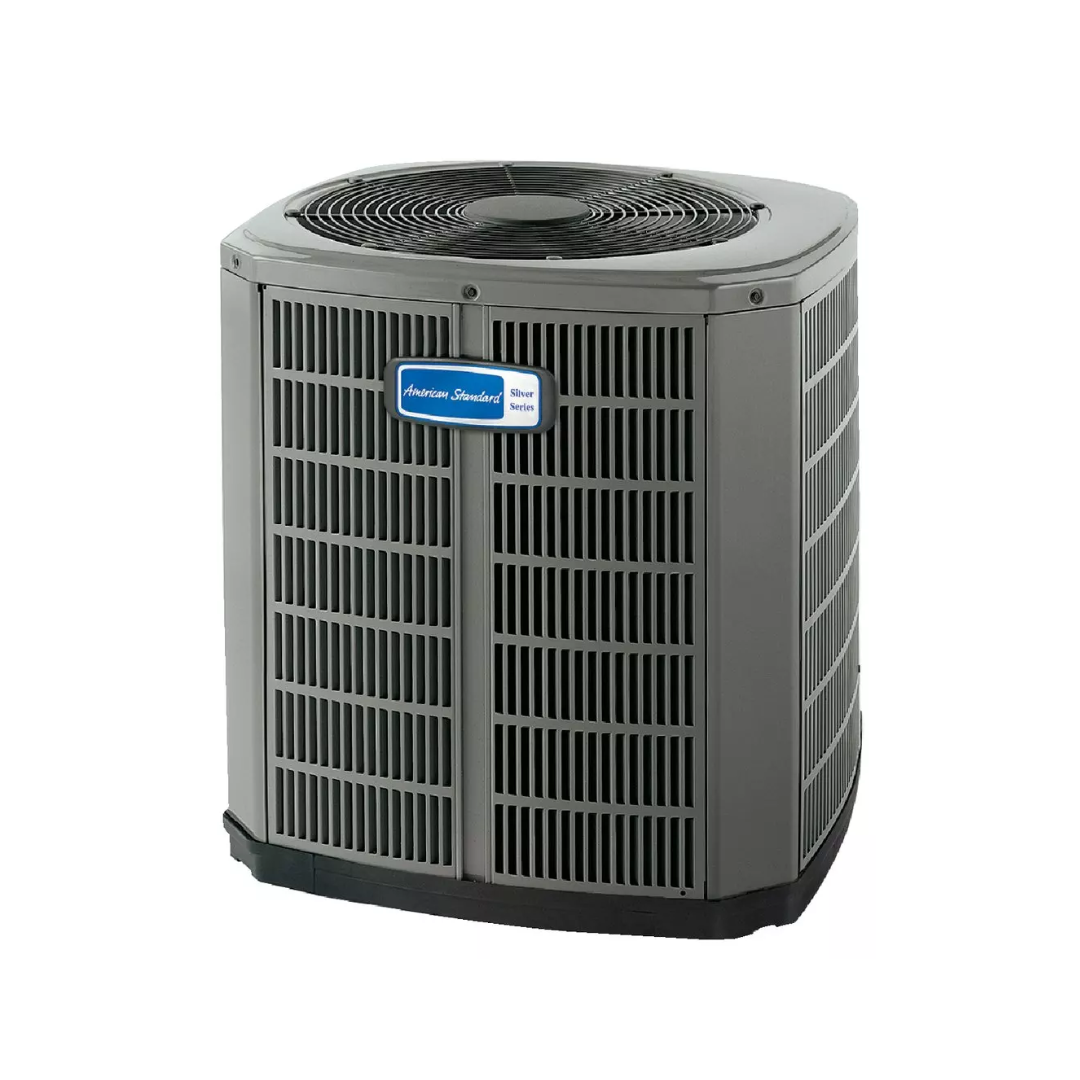

Heat Pump | 5A6H7
2 TON
3 TON
4 TON
- Multi-speed scroll compressor for more consistent comfort than single-stage units
- Spine Fin™ outdoor coil for enhanced heat transfer
- R-454B refrigerant — no ozone depletion potential, reduced environmental impact
- Compressor crankcase heater included
- AHRI certified per Standard 210/240
- Top discharge design for flexible placement
- A2L refrigerant compatible
- 208/230V single phase
- 10-year registered parts warranty
Got Questions?
| American Standard 5A6H7 Series – Multi-Speed Heat Pump Top Discharge (R-454B) | ||||||||||
| Model Number | Tonnage | SEER2 | Refrigerant | Power (V/Ph/Hz) | Min. Branch Circuit (A) | Max Breaker (A) | Gas Line (in) | Liquid Line (in) | Dimensions HxWxD (in) | Net Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 5A6H7024A1000A | 2 | 17 | R-454B | 208-230/1/60 | 18 | 20/30 | 3/4 | 5/16 | 40-3/4 x 32-5/8 x 29-3/4 | 194 |
| 5A6H7036A1000A | 3 | 17 | R-454B | 208-230/1/60 | 29 | 30/40 | 3/4 | 5/16 | 40-3/4 x 32-5/8 x 29-3/4 | 194 |
| 5A6H7048A1000A | 4 | 17 | R-454B | 208-230/1/60 | 33 | 35/50 | 7/8 | 5/16 | 40-3/4 x 37-1/4 x 34-1/4 | 231 |
Multi-speed scroll compressor. AHRI certified per Standard 210/240. Compressor crankcase heater included. Spine Fin™ outdoor coil.
